April 2025: A day in the life at Badlands
A Closer Look at the Manufacturing Process
To showcase the precision and expertise behind our antenna production, the Badlands factory became a studio for a day to produce a video that will provide an inside look at our manufacturing process. We wanted to show the real people behind the operation here and all the incredible work they do.
By visually demonstrating our commitment to quality, we want to give customers a deeper understanding of our craftsmanship.
Watch here!
Featured Antennas
- FINDIPMAG – A compact and highly efficient antenna with a magnetic base, ideal for industrial and vehicular applications.
- OPTIMUSMIMOX4W/B – A robust and high-performance MIMO antenna designed for advanced connectivity in harsh environments.
- MIMOCOLBRACBX2 – A durable, bracket-mounted antenna solution for professional-grade communication networks.
Get in Touch for Pricing & Support
Customers looking for pricing information or assistance can contact Adrian at 01384 423160 or via email at adrian@badland.co.uk. Visit their brand-new website at www.badland.co.uk to explore their full range of products.
With a fresh online presence and exciting plans to showcase their production expertise, Badland continues to lead the way in UK antenna manufacturing. Stay tuned for more updates! 🚀
Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / 5G LTE Antennas / LTE
Mountings: Mag Mount
Polarity: Vertical
Gain: 3 dbi
VSWR: 1.5 : 1
Dimensions: Height: 160 mm / Width: 45 mm / Length: N/A / Diameter:
Cable: 5.00 metres of RG58
Connector: To Be Specified
Power Handling: 35 watts
Impedance: 50 ohm
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67

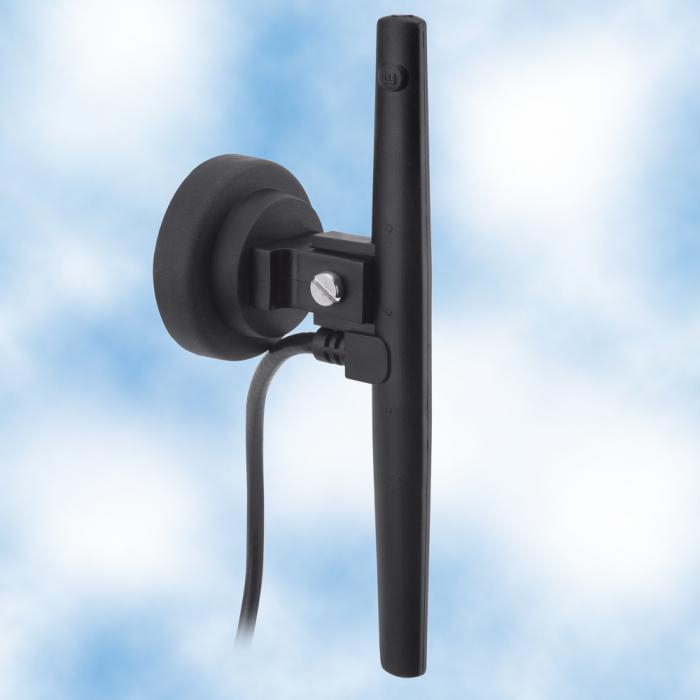

DIPOLE WITH MAG MOUNT 3G 4G 5G
ID : FINDIPMAG
1Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE
Mountings: Brackets / Fixed Mounted Base Station
Polarity: Vertical
Gain: 5 dbi
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 170 mm / Width: N/A / Length: N/A / Diameter: 55 mm
Cable: 3.00 metres of LBC100
Connector: To Be Specified
Power Handling: 40 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
OPTIMUS MIMO 4G/5G/LTE ANTENNA WITH WALL BRACKET
ID : OPTIMUSMIMOX4W/B
2Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / Blueooth / WiFi / WI-MAX / 5G LTE Antennas / LTE
Mountings: Fixed Mounted Base Station / Brackets
Polarity: Vertical
Gain: 7 dbi
VSWR: 1.5 : 1 across spectrum
Dimensions: Height: 550 mm / Width: N/A / Length: N/A / Diameter: 1
Cable: 5.00 metres of LBC195
Connector: To be specified
Power Handling: 35 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67

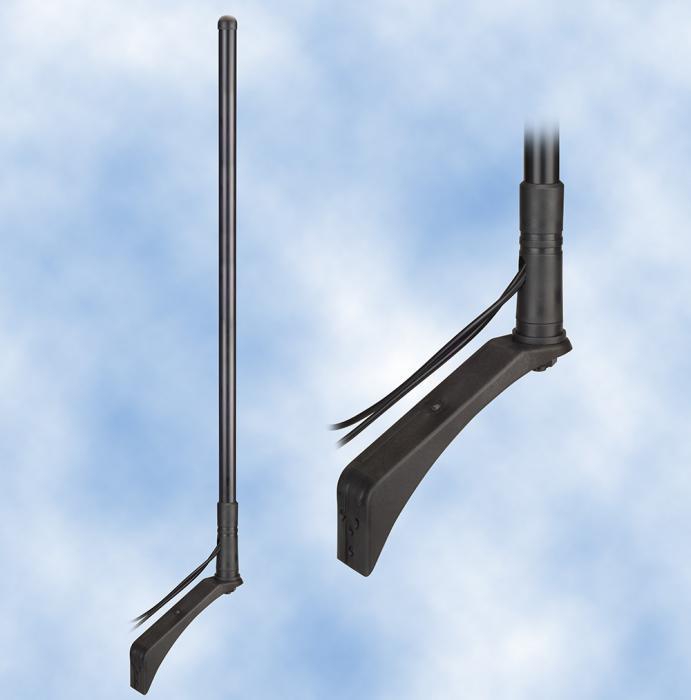

HI GAIN MIMO COLINEAR ANTENNA WITH BRACKET
ID : MIMOCOLBRACBX2
3
