June 2024: New Releases from Badland
Badland’s June 2024 antenna collection showcases the perfect blend of innovation and durability. Supporting a wide range of frequencies, these antennas are ideal for GSM, LTE, and Wi-Fi applications. Designed for resilience, they guarantee seamless communication in any scenario.
Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / GPS / Blueooth / WiFi / WI-MAX / 5G LTE Antennas / GNSS / GLONASS / LTE
Mountings: Fixed Body Mount
Polarity: GPS : Circular / 3G / 4G - Vertical or Horizontal
Gain: 2G/3G/4G - 3 dbi / GPS/GNSS - 18 db or 27 db
VSWR: 1.5 : 1
Dimensions: Height: 25 mm / Width: N/A / Length: N/A / Diameter: 100 mm
Cable: 5.00 metres of RG174
Connector: To Be Specified
Power Handling: GPS : 25 ma / G3 4G - 20 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67

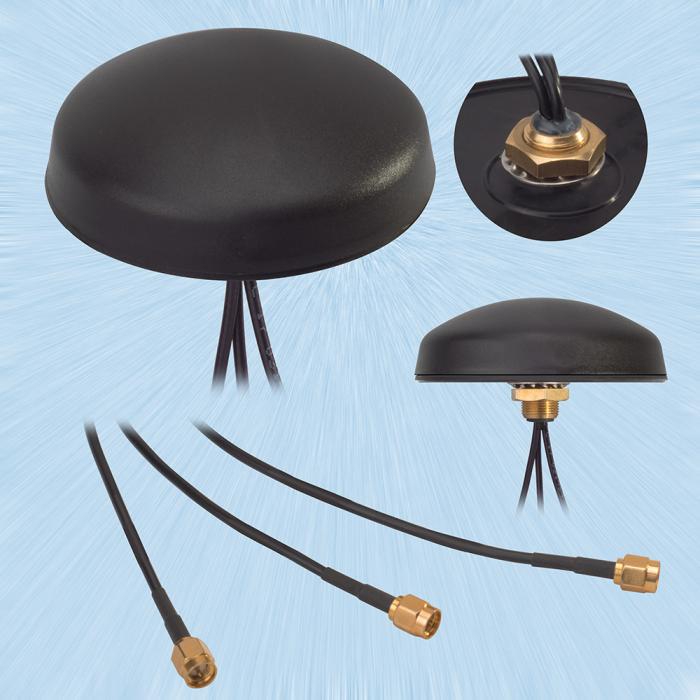

MULTIBAND ANTENNA MIMODOME GPS/3G/4G/5G
ID : 3G4G5GGPSMIMODOME
1Frequency: 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas
Mountings: Fixed Body Mount
Polarity: Vertical or Horizontal
Gain: 6db
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 665mm with TILT& SWIVEL / Width: N/A / Length: / Diameter: 5 cm
Cable: 3.00 metres of LBC100
Connector: To Be Specified
Power Handling: 50 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP68

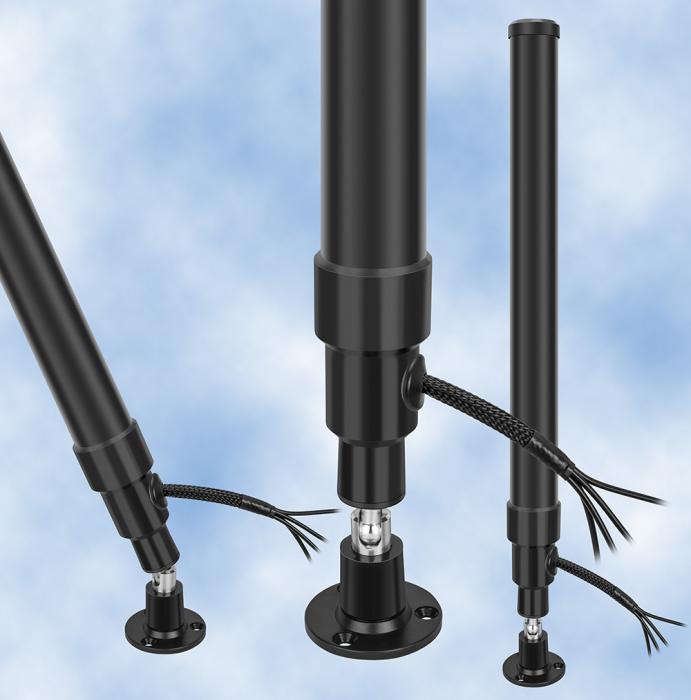

HI GAIN MIMO COLINEAR 4 X CABLE SURFACE MOUNT WITH TILT & SWIVEL 4G/5G
ID : 4G/5G MIMOCOLSM/TSX4
2Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas
Mountings: Mag Mount
Polarity: Vertical or Horizontal
Gain: 6db
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 671 mm with tilt & swivel / Width: N/A / Length: N/A / Diameter: 5 cm
Cable: 3.00 metres of LBC100
Connector: To Be Specified
Power Handling: 50 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP68
HI GAIN MIMO COLINEAR 4 X CABLE MAG MOUNT WITH TILT & SWIVEL
ID : 4G5GMIMOMAGT/SX4
3
