March 2025 - MIMO's Month
Crafted by our skilled in-house engineers, our new MIMO antennas are here!
What is MIMO? Glad you asked, MIMO technology (multiple-input, multiple-output) has become a key enabler for 5G smartphones and routers, significantly enhancing data throughput and connectivity. By incorporating multiple antennas into the compact design of modern smartphones, MIMO technology improves spectral efficiency and network capacity.
It's no surprise, therefore, that this month we are shining the spotlight on this brand new range. These MIMO antennas help condition the outdoor signal and receive better data rates which is ideal for utility companies.
If you're looking to improve 5G signal for a gateway, modem, or router, we strongly recommend considering MIMO antennas. MIMO antennas need to be connected directly to the device, but they perform better than boosters and will get you the fastest possible data rates .
As always with Badland, these have been developed and are manufactured in our UK factory in the heart of the West Midlands. Click on the products below to find out more!
Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE
Mountings: Brackets / Fixed Mounted Base Station
Polarity: Vertical
Gain: 5 dbi
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 170 mm / Width: N/A / Length: N/A / Diameter: 55 mm
Cable: 3.00 metres of LBC100
Connector: To Be Specified
Power Handling: 40 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67

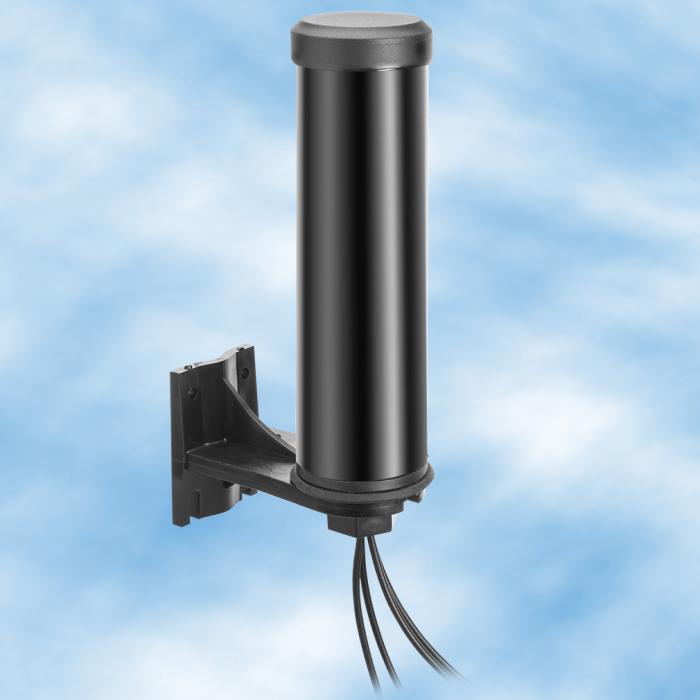

OPTIMUS MIMO 4G/5G/LTE ANTENNA WITH WALL BRACKET
ID : OPTIMUSMIMOX4W/B
1Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE
Mountings: Fixed Body Mount
Polarity: Vertical
Gain: 5 dbi
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 170 mm / Width: N/A / Length: N/A / Diameter: 55 mm
Cable: 3.00 metres of LBC100
Connector: To Be Specified
Power Handling: 40 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67

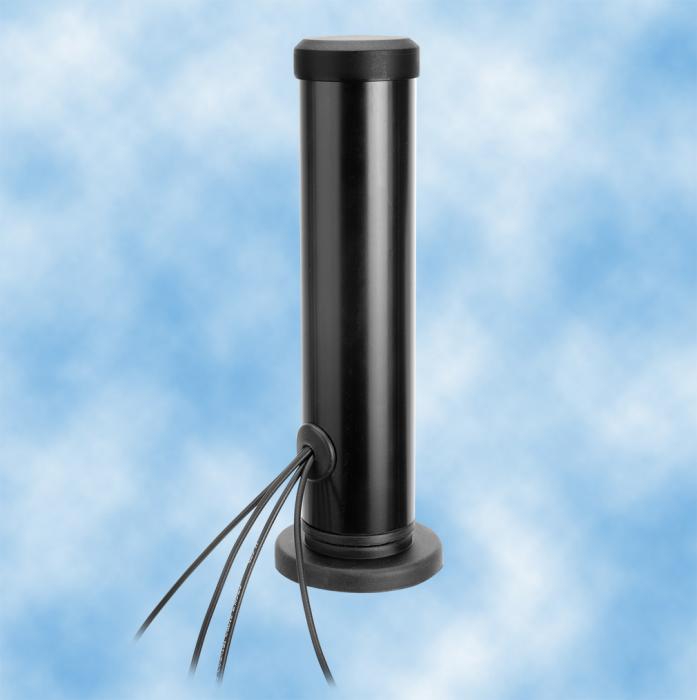

OPTIMUS MIMO BODY MOUNT 4G/ 5G / LTE
ID : OPTIMUSMIMOB/M
2Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / Blueooth / WiFi / WI-MAX / 5G LTE Antennas / LTE
Mountings: Mag Mount
Polarity: Vertical
Gain: 5 dbi
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 170 mm / Width: N/A / Length: / Diameter: 55mm
Cable: 3.00 metres of LBC100
Connector: To Be Specified
Power Handling: 40 Watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
OPTIMUS MIMO 4G / 5G MAG MOUNT
ID : OPTIMUSLTEMAGX4
3
